Project Folio–Part II

Project Portfolio Filled_1

This is part two of the tutorial for the Project Folio.  Click *here* for part one.

STEP TWO: Making the Front Vinyl Window

8Sandwich Vinyl

The side (1 1/2″ wide) strips go on first, on the shorter (15″) sides of the vinyl rectangle.  Sandwich the vinyl between one interfaced piece of fabric and the other (un-interfaced, or plain) piece of fabric, lining up the raw edges, with right sides facing each other and towards the vinyl.

9StitchVinyl

If your strips are longer than your vinyl, don’t freak out.  Just center the vinyl and stitch along the long edge, using a 1/4″ seam.  Carefully press the strips away from the vinyl, keeping your iron ONLY on the fabrics.  Don’t touch the vinyl.  You won’t be happy if you do.  Topstitch on the fabric, about 1/8″ away from the vinyl.  You may use contrasting or matching thread.  I was whipping through these, so whatever I was sewing with was what I used for topstitching.

10Trim Edges

Trim the fabric strips even with the vinyl.  Repeat on other shorter side.

11Top Strip_2

To put the upper, top strip on, sew ONE piece of wider (2 1/2″) interfaced fabric to the vinyl, right sides together.  It’s easier if you put the vinyl to the feed dogs to do this step, and kind of ease it along.

11Top Strip_3

Fold the long  edge over 1/2″ and press.  You are working on the TOP edge of the vinyl front window at this point.

11Top Strip_4

Turn to the back, lining up the folded edge with the seamed edge, peeking through the vinyl to make sure they line up.  Topstitch this down, encasing the vinyl edge.  After stitching, if the raw edges extend beyond the existing side pieces, trim.

11Top Strip_5

Here are all three of my folios, showing trimmed edges and stitched-down tops.

To add the edging to the bottom of this window, use the sandwich technique you used with the shorter sides.  Sandwich the vinyl in between one interfaced piece of fabric and one (un-interfaced, or plain) piece of fabric, right sides facing each other and towards the vinyl.  Stitch in a 1/4″ seam, then press away from the vinyl.  (Carefully.)

12Bottom Strip

I’m trimming the excess fabric off the bottom strips in this photo.

STEP THREE: Trueing-Up the Back and Front

Confession: I had a scrap of vinyl that was slightly smaller than the desired size, but I used it anyway.  But then that makes the front a different size than the back.  I can fix this with my rotary cutter.

No, I didn’t obsess about cutting down the back, either. BUT! I only trued up the sides.  The front is LONGER than the back, in the top-to-bottom measurement.  DON’T TRIM THE TOP OR BOTTOM!!

13 Truing Up_1

Just lay the back down onto the vinyl window front, centering it as shown in the photo above, so you can trim the exact same amount from the sides.

13 Trueing Up_3

I’m only trimming down the sides here.  I kept the differences in the top-to-bottom and only cut the sides to be the same width.

13 Trueing Up_2

Sides are trued up; notice longer length on vinyl window front, peeking from behind the back pieces.

Next post: Zippers!! and Finishing.  And a Giveaway!!

Three Portfolios_corners

All of these folios measure roughly 11 x 17.  You are more than welcome to make these for your own use, or sell them in a craft faire, but please please, don’t take any of my tutorial and copy it onto your blog.  Practice Friendly Attribution, if you please, by linking back here, if you would.  And please please don’t steal my content to make your own pattern, and call it your own.

Project Portfolio Tutorial–Part I

Project Portfolio Three_top

A long time ago, in a foreign market, I bought zip portfolios to hold stuff.  But they weren’t always quite right–too small, too rigid–for my projects, too wrong-sized.  So I decided this summer to make my own.

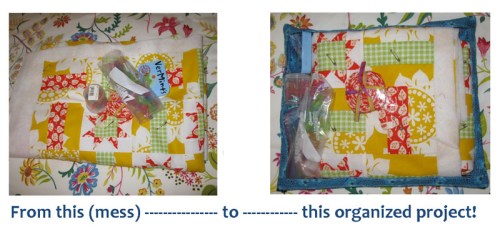

1Project Portfolio

But that’s just a way to lead you into thinking about your fall, now that schools are beginning to start and you can finally finish a sentence — or a seam —  without being interrupted by your offspring or husbands or pets or whatever.  And now you are going to be sewing up a storm, and need a way to keep all your projects organized as you head out to sewing circles, sew days, quilt nights, or just stay home and quilt in your jammies.  Because it’s almost fall, after all, and you can. (My apologies to my Southern Hemispheric readers–just substitute in the appropriate season.)

Project Portfolio_chair

Materials:
Two coordinating fabrics.  One will show on the outside, and the other will be the lining, but will show through the vinyl window
Clear medium-weight vinyl from the upholstery department.  Save the tissue they have with the vinyl–it’s easier to store that way
Fusible medium-weight interfacing
Zipper, approximately 20″ (you’ll be trimming it to size)
Matching thread

(Note: I am using three different fabrics in the following illustrations, so you may see some switching out.)

Project Portfolio Cutting Diagram

STEP ONE: Fusing

2Fusing back piece

Lay the fusible interfacing shiny side (resin-coated side) down onto the Wrong Side (WS) of your outer backing piece.  If you like to live dangerously, don’t use a press cloth while fusing the interfacing to the back in an ordered fashion: overlapping the iron shape, giving it a shot of steam, counting one-two-three-four in each position of the iron.

3Fused Pieces

Lay the interfacing fusible-side down and fuse to TWO of the four narrower pieces that will border your clear vinyl window on the side.

Then fuse interfacing to only TWO of the wider strips, as these will be used on the upper and lower edges of the “vinyl window.”

The results are above: one large rectangle of interfacing fused to main back fabric, and four pieces of interfacing fused to the four strips of main fabric.

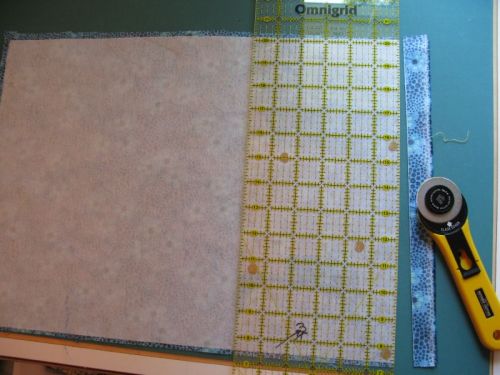

4Trim to Interfacing

Trim up so the backing is even with the interfacing.  Try not to fixate on the fact that now your portfolio will be a hair smaller.  It’s really not important what the final dimension is, as you can still pack a ton of stuff in there.  Trust me.

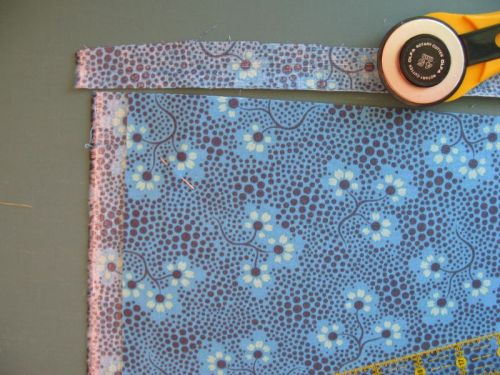

5 Trim Lining

Lay the fused backing piece on top on the lining piece, making sure that both right sides of the fabrics are facing outward.  Pin.  Trim.

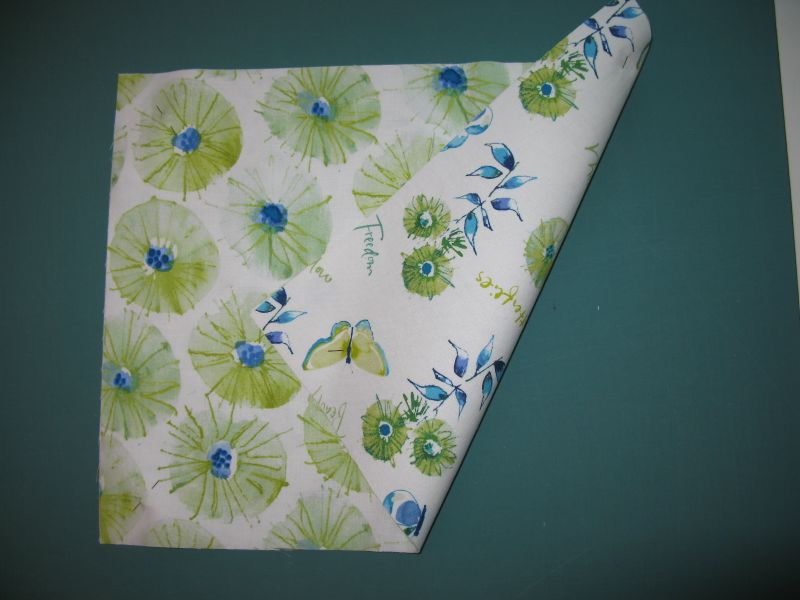

6 Trimmed Backing Complete

So this is what you’ll have: a two-sided rectangle.  Unpin the two layers, and set aside for now.

Tomorrow’s post will show STEP TWO: Making the vinyl window front.

All of these folios measure roughly 11 x 17.  You are more than welcome to make these for your own use, or sell them in a craft faire, but please please, don’t take any of my tutorial and copy it onto your blog.  Link back here, if you would.  And please please don’t steal my content to make your own pattern, and call it your own.  Practice Friendly Attribution, if you please.
